ALL AXIS USA

Ext. Reach From Post: 46’

Retracted Reach From Post: 7’10”

Rear Length From Post: 9’2”

Max Lens Height Underslung: 42’8”

Max Lens Height Overslung: 46’7”

Base Width: 5’1”

Minimum Clearance: 80” see-saw thru doorway / 84” strapped

Telescopic Range: 38’

Max Nose Load/ Underslung: 154 lbs

Max Nose Load/ Overslung: 99 lbs

Max Speed: 8’6” per sec

Total Weight Incl. Payload & Counterweights: 4,850 lbs

Empty Crane Weight: 3,086 lbs

Empty Arm Weight: 1350 lbs

Ext. Reach From Post: 23′

Retracted Reach From Post: 5′

Rear Length From Post: 6′

Max Lens Height Underslung: 21’11″

Max Lens Height Overslung: 26’2″

Min Base Width: 29”

Max Base Width: 71”

Minimum Clearance: 6’6″

Telescopic Range: 18′

Max Nose Load/ Underslung: 154 lbs

Max Nose Load/ Overslung: 99 lbs

Max Speed: 5’10” per sec

Total Weight Incl. Payload & Counterweights: 2,425 lbs

Empty Crane Weight: 1,322 lbs

Empty Arm Weight: 562 lbs

Ext. Reach From Post: 30’-37’

Retracted Reach From Post: 7’6”

Rear Length From Post: 8’

Max Lens Height Underslung: 30’

Max Lens Height Overslung: 35’

Base Width: 52” with stage wheels - 61” with pneumatic wheels

Minimum Clearance: 77” with pneumatic wheels

Telescopic Range: 21’ – 27’

Max Nose Load/ Underslung: 154 lbs

Max Nose Load/ Overslung: 77 lbs

Max Speed: 6’6” per sec

Total Weight Incl. Payload & Counterweights: 3,300 lbs

Empty Crane Weight: 1,851 lbs

Empty Arm Weight: 650 lbs

Ext. Reach From Post: 10’6”

Retracted Reach From Post: 3’5”

Rear Length From Post: 4’5”

Max Lens Height Underslung: 13’9”

Max Lens Height Overslung: 15’4”

Minimum Clearance: 5’8”

Telescopic Range: 7’7”

Max Nose Load/ Underslung: 154 lbs

Max Nose Load/ Overslung: 99 lbs

Empty Arm Weight: 150 lbs

Ext. Reach From Post: 35’ – 45’

Retracted Reach From Post: 8’2”

Rear Length From Post: 7’9”

Max Lens Height Underslung on Cobra base: 42’

Max Lens Height Overslung on Cobra base: 48’

Base Width: 61”

Minimum Clearance: 84”

Telescopic Range: 36’5”

Max Nose Load/ Underslung: 118lbs/45’

Max Nose Load/ Overslung: 80 lbs

Max Speed: 6’6” per sec

Total Weight Incl. Payload & Counterweights: 4,210 lbs

Empty Crane Weight: 1,853 lbs

Empty Arm Weight: 1,241 lbs

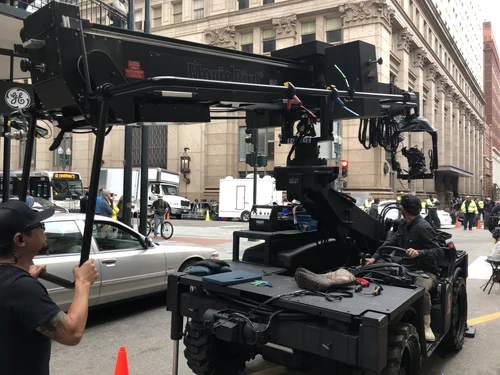

4x4 Off-Road Mobile Base

4 Wheel Steering (Roundy)

Crab Steering (all 4 wheels in same direction)

Length (without crane): 12 feet

Width: 6 feet

Max boom (crane fulcrum height): 10 feet above ground level

Max Speed: 20 mph

Chassis weight (without crane): 10,000lbs

Weight with loaded crane: 14000lbs

Min height with crane: 8.5 feet

Waterproof

Earth horizon leveling

Lightweight carbon construction with the ability to hold standard cinema packages

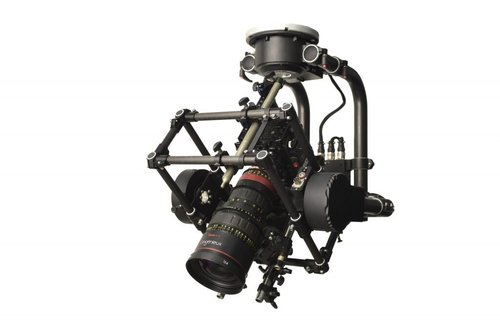

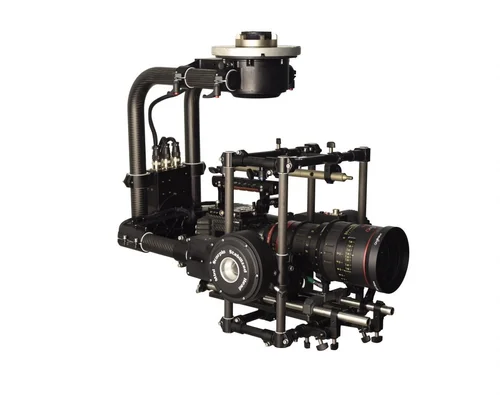

• 4 axis gyro stabilized

• Head Weight: 45 lbs

• Max Payload: 50 lbs

• Capable of Matrix Mount (nose mount)

• Capable of 360° roll at 0° tilt

• Capable of repeatable moves

• Pan Limit: 360°

• Stabilized Roll Limit: +/-60°

• Speed: 180°/sec

• Power Requirements: 30V DC

• Controls: Handwheels (Included), Opt: Joystick, Pan-bar

• Vibration Generator

• Wireless 900 MHz Scorpio Radio

Universal Leveling Head

From underslung to overslung in seconds without removing the head or camera, Kornercrane can also achieve nose mount and “active out front” during the shot.

Compatible with Moviebird, Scorpio, and Supertechno cranes.

SPECS

Weight - 38lbs

Payload - 150lbs

Programmable safety limits

System Type: 4 axis gyro stabilized

Head Weight: 72 lbs

Max Payload: 100 lbs

Pan Limit: 360°

Tilt Limit: 360°

Roll Limit: 30° +/-

Pan Speed: 120° per sec.

Tilt Speed: 120° per sec

Roll Speed: 120° per sec

Operating Temp: -20° F to 120° F

Power Requirements: 30V DC

Min. Dims: 28” T x 25” W x 12” D

Controls: Handwheels (Included)

Opt: Joystick, Wireless Control, Pan-bar

System Type: 3 axis gyro stabilized

Head Weight: 25 lbs

Max Payload: 50 lbs

Pan Limit: 360°

Tilt Limit: +90°/-170°

Roll Limit: +/- 90°

Pan Speed: 200° per sec.

Tilt Speed: 200° per sec

Roll Speed: 200° per sec

Operating Temp: -4° F to 122° F

Power Requirements: 22V  DC

Min. dims: 27.5” T x 20” W x 26” D

Controls: Wireless Mimic & MōVI Controller

Opt: Handwheels, Wireless Video

System Type: 3 axis gyro stabilized

Weight: 14 lbs

Min Height: 24”

Width: 14”

Max Payload: 30 lbs

A robust, lightweight, 3 axis non-stabilized repeatable head. Every axis continues through 360° with recordable functions. Accommodates all film and digital cinema cameras with a precise nodal roll axis.

Approximate Dry Weight: 50lbs

Max Camera Weight: 100lbs

Max Pan/tilt/roll Speed: 180 Degrees/second

Record Time: 52 Seconds

Mechanical Speed: 540 degrees each axis

Pan Speed: 2.0 sec for 180 degrees

Tilt Speed: 2.0 sec for 180 degrees

Max Camera Payload: 60 LBS

Weight: 22.5 pounds

Height: 20.5 inches

Width: 12 inches

System Type: 2 axis remote head

Head Weight:
40 lbs (2 axis) 55 lbs (3 axis)

Max Payload:
100 lbs (2 axis) 44 lbs (3 axis)

Pan Limit: 360°

Tilt Limit: 360°

Pan Speed: 145° per sec

Tilt Speed: 145° per sec

Min. Dims:
24.7” T x 12.56” W x 7.2” D (2 axis)

Power Requirements: 24V DC to 35V DC

Controls: Handwheels (Included)

Opt: Joystick, Wireless Control, Pan-bar

Battery: 72V

Motor Type: 72V (Front and Rear)

Drivetrain: 72V AC Electric

Differentials: Open

Regenerative Braking: Yes

Suspension: Independent MacPherson Struts

Brake System: 4-Wheel Hydraulic Disc

Max Weight Capacity: 1000 lbs

Towing Capacity: 1000 lbs

Max Speed: 30 mph

Min Length: 9’4’

Min Width: 53”

Min Height: 77”

Overall Dry Weight: 1700 lbs

Ground Clearance: 16” Center of Frame / 10” Under Axle

Hitch: Standard 2” Receiver

Power: Lithium

Width: 48”

Length: 132”

Height: 32”

Top Speed: 40 mph

Payload: 1600 lbs

Max Load: 70 lbs

Dampening: 6 Fully Adjustable Dampeners (2 per each axis - Vertical, Tilt, Roll)

Mounting: Any Standard 48-52mm Speed Rail (1 1/2” ID )

Camera Mount: Standard Mitchell Female

Set-up Time: 2 min.

Min. Reach: True 6 ft.

Max. Reach: True 10 ft.

Weight: 65 lbs. with extension for 10' reach

Max. Weight Capacity: 120 lbs. at 6ft. / 80 lbs. at 10 ft.

Mounting Requirements: Dolly, tripod or other with 7" Mitchell mount

Camera Mounting: Over or under 7" Mitchell mount

Construction: Machined/extruded aluminum, stainless steel

Counterweight/Camera Ratio: 1.8:1 @ 6 ft; 3:1 @ 10 ft.

Counterweight Style: Standard 1 in. barbell

- Custom Compact Telescopic Jib
- Load Capacity: 176lb
- Telescopic Jib: 9ft
- Extension Section: 3.3ft
- Maximum Length w/ Extension: 12.4ft
- Minimum Length: 5.10ft
- Weight (w/o Case/Counterweights): 80lb
- Case Dimensions LxWxH: 69” x 25” x 19”

Mitchell mount

100lb Payload

Safe over crowds.

Repeatable moves and soft stops.

Maxcrane is a 500hp custom Porsche Cayenne turbo with “Russian Arm.”

Outfitted with HDR monitors, wireless coms, and playback system, this camera car has everything you need to shoot dynamic driving on or off road.

Arm Length: 16’ from fulcrum

Minimum Clearance 8’ 8” without riser

Max Lens Height: 13’

MAXIMUM ALL UP AIRCRAFT WEIGHT: 75lbs
BATTERY REQUIREMENTS: 4 x 6s 8,000 mAh – 16,000mAh
FLIGHT TIME: 9 – 30 Minutes (Depending on Camera and Battery Configuration)
MAX TESTED SPEED: 45 mph
POWER SYSTEM: DJI E5000 Pro Motor / ESC / Propeller / Motor Mount
GUIDANCE: DJI A3 Pro Flight Controller (Triple IMU & GPS Redundancy)

FPV is an exciting and frenetic drone option for action-packed shots. While shooting FPV, the viewer experiences the dramatic swooping, banking, and SPEED of our nimble aircrafts.

When the gap is tight, this is the aircraft that can make it through small spaces and turn on a dime.

Flight Time: 6-12 minutes
(Depending on payload & environment)

8K Full-Frame Sensor

Dual Native ISO

8K25 CinemaDNG or 8K75 Apple ProRES

Up to full-frame 4K 120fps ProRes RAW without cropping

Weight: 11 lbs

Flight Time: Up to 25 minutes

Top Speed: 58 mph

Camera: Super 35 sensor (same size sensor as Arri Alexa Mini)

Lenses: Hasselblad carbon primes for aerial use (16mm, 24mm, 35mm, 50mm)

Resolution: 6K RAW (completely uncompressed) and ProRes RAW

All Axis has resources in all specialty camera applications.

Our expert crew is also some of the most experienced underwater filmmaking specialists in the market.

From equipment to UW crew (operators, riggers, camera support), AA USA is happy to share our resources for shooting wet.

High-speed precision camera robot

6 axis robotic arm + track

Camera payload up to 20kg

Track speeds up to 5m/sec

Arm reach 2m

Max Height 3.5m

Can be used as model mover

Perfect for tabletop photography

Studio space and Phantom camera also available
